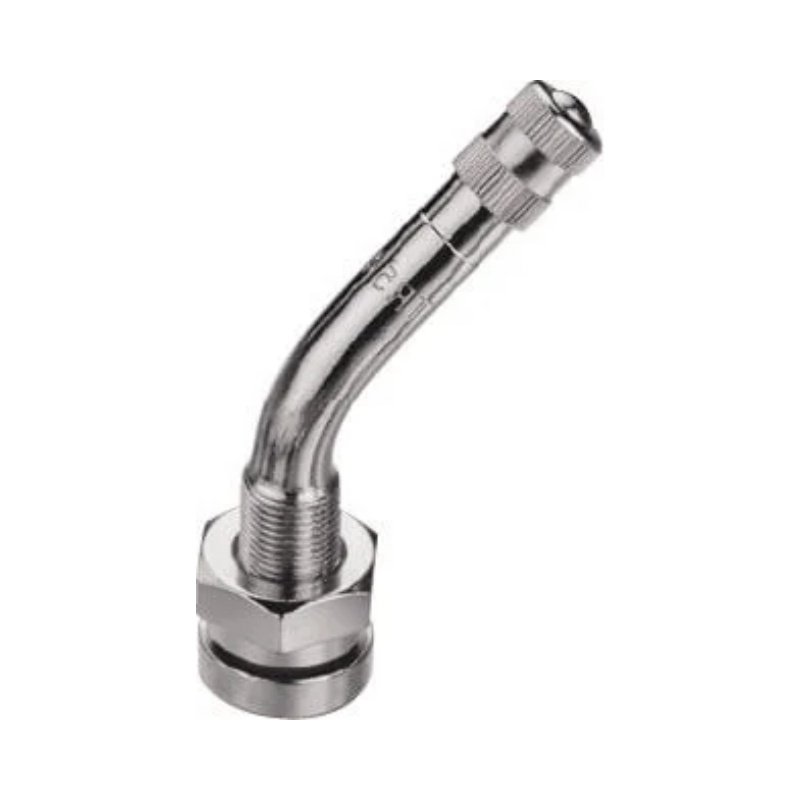

TR543D O-Ring Seal Clamp-In Valves

The Fortune TR543D is one of the O-ring seal clamp-in valves designed for tire service applications, featuring a 60° angled body with defined A = 25 mm and B = 35 mm reference dimensions. Its replaceable 9002# valve core allows convenient servicing, while the included RG60 grommet, HN21D nut, and buyer-specified VC2 or VC3 cap complete the assembly. Packaged at 25 pieces per bag and 250 pieces per case, the TR543D provides an intermediate bend angle between the V3-20 series’ 42° maximum and the TR509/TR510 series’ 90° configuration. The A/B reference dimensions also help buyers match valve geometry to specific wheel requirements.

MODEL NO. CORE GROMMET NUT CAP A B β° PACKAGE
TR543D 9002# RG60 HN21 VC2/VC3 25 35 60 25 pcs/bag, 10 bags/case
Facebook Linkedin Youtube

100% Automated Leak Testing

ETRTO compliant with defect rates strictly capped <50 PPM.

VCI Anti-Oxidation Logistics

Vacuum-sealed B2B packaging & ISPM-15 fumigated pallets.

Direct Factory OEM/ODM

Custom CNC dimensions & proprietary alloy machining available.

request a wholesale quote

Fortune metal tire valve: the engineering advantage

The Fortune TR543D’s engineering advantage delivers three concrete B2B outcomes for distributors and brand owners. The 60° bend angle fills the gap between V3-20 series’ 42° maximum and TR509/TR510’s 90°. The explicit A=25mm / B=35mm specification gives buyers two reference dimensions for valve geometry matching—more granular than single-A specs in the HN21 nut platform. The shared 9002# / RG60 / VC2-VC3 serviceable components with TR542 and V3-20 series enable cross-line service-part pooling.

60° Bend Angle Fills Mid-to-Deep Gap

The 60° bend angle fills the gap between V3-20 series' 42° maximum and TR509/TR510's 90°. This mid-to-deep-angle configuration adds another bend option while sharing the RG60/VC2-VC3/9002# serviceable stack with TR542.

A/B Dual-Dimension Specification

TR543D specifies both A=25mm and B=35mm reference dimensions, giving buyers two reference parameters for valve geometry matching. This dual-dimension spec is more granular than single-A specs in the HN21 nut platform.

HN21D Nut Designation

TR543D pairs with HN21D nut, the D-suffix variant of the HN21 nut platform used in TR542. The HN21D designation enables within-platform differentiation while sharing the HN21 base identifier for procurement grouping.

get physical prototypes

Fortune metal tire valve applications

Our metal tire valves deliver absolute structural integrity and guaranteed air retention for the most demanding industrial, commercial, and high-performance applications. Engineered specifically to withstand extreme tire pressures, high-speed centrifugal forces, and severe operational temperatures, these valves provide guaranteed OE-level fitment and long-term durability. We manufacture precise sealing solutions that integrate directly into heavy-duty operations across three core vehicle sectors.

commercial fleets & heavy-duty trucks

Designed specifically for continuous radial stress in long-haul logistics. Our heavy-duty commercial metal tire valves (including the V3.20 and TR500 series) are CNC-machined to precisely fit standard 9.7 mm (0.390") and 15.7 mm (0.625") heavy-duty truck rim holes. Engineered for a strict installation torque of 10 to 14 Nm (88-124 in-lbs), they are manufactured to sustain extreme maximum cold inflation pressures up to 200 PSI (1380 kPa). The solid brass construction, combined with severe-environment EPDM O-rings rated for continuous heat exposure up to 130°C (266°F), maintains a perfect airtight seal against the extreme heat radiated from commercial brake drums, ensuring zero air loss on standard heavy-duty steel and aluminum truck wheels.
request a quote

high-performance passenger vehicles

Engineered for high-speed dynamic stability at speeds exceeding 240 km/h (150 mph). Our passenger metal tire valves utilize a strictly toleranced mechanical clamp-in structure, CNC-machined to an exact ±0.01 mm precision. Featuring heavy-duty hex nuts designed for a strict installation torque of 4 to 6 Nm (35-55 in-lbs), they securely lock into standard 11.3 mm (0.453") valve holes on high-performance aluminum alloy wheels. This construction maintains absolute physical rigidity against extreme highway centrifugal forces, mathematically guaranteeing air retention at maximum cold inflation pressures up to 100 PSI. Coated with an advanced anti-corrosion finish verified by 96 hours of Neutral Salt Spray (NSS) testing, they deliver precise fitment and guaranteed high-speed safety for Tier-1 automotive assembly lines.
request a quote

agricultural & off-the-road (OTR) machinery

Built for massive payload compressions and severe terrain impacts. Our large-bore agricultural and OTR metal tire valves (such as the TR-618A series) feature heavily reinforced solid metal walls engineered to fit standard 15.7 mm (0.625") rim holes. Equipped with specialized fast-flow core housings (such as the CH-3), they deliver up to 300% higher air-flow rates than standard valves to facilitate rapid liquid ballast filling and high-volume inflation. Utilizing advanced EPDM compounds rated for extreme temperature fluctuations from -40°C to +120°C (-40°F to +248°F), they provide maximum physical resistance against mud and direct mechanical impacts. This mathematically guarantees constant tire pressure under extreme payloads and sustained inflation limits up to 150 PSI in mining, construction, and heavy agricultural environments.
request a quote

Why Partner with Fortune for Metal Tire Valves

Backed by 30 years of dedicated manufacturing expertise (Est. 1996), Fortune operates as an ISO/TS 16949:2018 and TÜV SÜD certified direct manufacturer. We do not simply assemble sourced components; we engineer our entire range of metal tire valves—from high-pressure passenger series to heavy-duty commercial truck metal tire valves—from the ground up. By centralizing a 30+ engineer R&D team, 100% in-house CNC processing, and premium copper/EPDM formulations within our facility, we physically eliminate the high-pressure leakage risks common in low-end aftermarket alternatives. We deliver a verified, fact-driven B2B supply chain built for high-volume global execution.

dedicated metal tire valve engineering & CNC innovation

All metal tire valve product development and structural design operations are executed directly by our professional team of over thirty experienced engineers and technicians. Guided by our core principle to “develop with technology,” this team continuously scales our high-pressure metal tire valve production capacity—yielding up to 5 Million units monthly. By integrating over 100+ advanced automated CNC processing machines directly into our assembly lines, we mathematically guarantee a strict machining tolerance of ±0.01 mm for every valve thread and hex nut, ensuring absolute precision and airtight fitment.

ISO/TS 16949 certified metal tire valve production

Our entire metal tire valve manufacturing facility is governed by strict ISO/TS 16949:2018 and TÜV SÜD quality management systems. We do not rely on random batch sampling; 100% of our metal tire valves undergo severe physical testing, including automated high-pressure air leak tests up to 130 PSI / 900 kPa and Neutral Salt Spray (NSS) corrosion testing for up to 72 – 96 hours to guarantee OE-level durability. For high-volume B2B orders, manual counting is obsolete. Our packaging lines utilize advanced automated precision weighing systems accurate to ±0.1 grams, mathematically guaranteeing absolute counting accuracy (exactly 100 pcs/box) before any container is shipped.

high-volume manufacturing & port logistics

Operating out of a highly advanced 25,000-square-meter manufacturing facility located just 45 kilometers from Ningbo Port—the most vital port city in China’s Yangtze Delta—we possess the robust logistical infrastructure required to execute rapid, high-volume metal tire valve exports. This strategic proximity allows us to cut domestic inland transit to under 2 hours, ensuring strict and stable delivery lead times of 15 to 25 days for bulk full container load (FCL) orders directly from the factory floor to your designated global facility.

global OEM servicing & localized support

Our engineered metal tire valves are fully integrated into the supply chains of over 300 OEMs and Tier-1 aftermarket customers across 65 countries in the Americas, Europe, Japan, Asia, and Oceania. To bypass cross-border communication delays and provide superior, localized support for our partners, we strategically established direct warehouses and corporate offices in North America in 2014. By maintaining a constant local inventory of over 2 million metal tire valves, we guarantee direct 24 to 48-hour local dispatch for our North American partners, delivering factory-direct pricing with zero international shipping delays.

partner with Fortune

more metal tire valves you might also like

FAQs about Fortune metal tire valve

factory photo

What types of metal tire valves can Fortune supply?

We supply a wide range of metal tire valves, including clamp-in tire valves, tubeless tire valves, TPMS-compatible valve stems, and customized valve solutions. Our products are suitable for passenger cars, commercial vehicles, trucks, trailers, motorcycles, and other automotive applications.

Yes. We provide OEM and ODM services for bulk buyers. Customization options include valve dimensions, materials, surface finishes, logo marking, packaging, and product specifications to meet different market and vehicle requirements.

We apply strict quality control throughout the manufacturing process, including incoming material inspection, dimensional testing, air leakage testing, assembly inspection, and final performance checks. Each batch is inspected to ensure stable quality and reliable sealing performance.

The MOQ depends on the product model and customization requirements. For standard metal tire valves, Fortune can support flexible bulk orders. Standard production usually takes around 15–30 days, while customized projects may require additional time for tooling, sampling, and approval.

Our metal tire valves are available in high-quality materials such as brass, aluminum alloy, and stainless steel. Different surface treatments, including chrome plating, nickel plating, and customized finishes, can be provided according to customer requirements.
