Everything You Need to Know About Your Drag Wheels Lug Nut Key

Selecting the correct drag wheels lug nut key is a simple process for your vehicle. You must match the key to your specific lug nuts to ensure a safe and secure fit for your tires.

First, identify your lug nuts design, such as a spline drive or a unique security pattern. Next, you must measure the specific size required for the application.

Matching the key to both the pattern and size is the only way to guarantee a secure fit. This process protects your vehicle and its expensive tires, performance tires, racing tires, and drag tires.

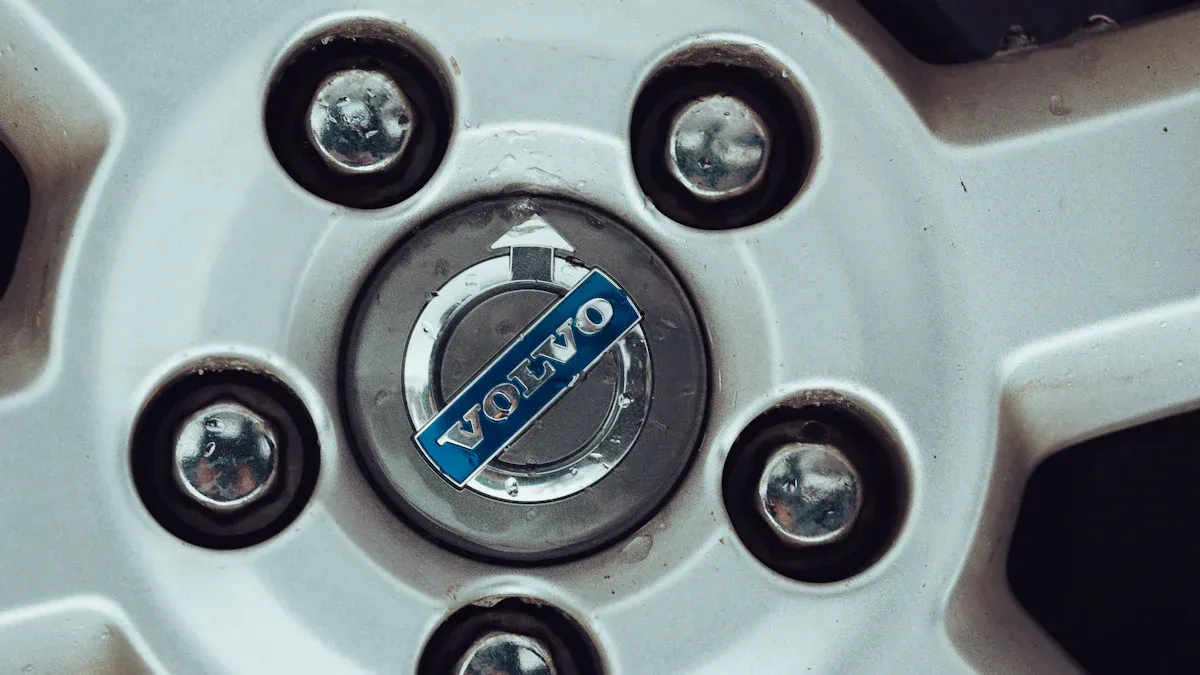

Step 1: Identify Your Lug Nut Pattern

The first step in finding the right key is to look closely at your lug nuts. Different wheels require different types of nuts for a proper and safe fit. You must correctly identify the design before you can find the matching key. This protects your investment in your wheels and tires. Let’s look at the three most common patterns you will find on your vehicle.

Spline Drive (Tuner) Lugs

You can identify spline drive lug nuts by their distinct appearance. These nuts have a series of long, thin grooves running down their sides, resembling a star or gear. They are very common on aftermarket wheels, especially those with small-diameter lug holes where a standard socket will not fit.

This design serves two main purposes.

• It allows the lug nut to have a smaller overall diameter.
• It helps prevent scratches on your wheel’s finish during installation and removal.

This specific application requires a matching drag wheels lug nut key with the correct number of splines to engage the grooves.

Internal Hex (Allen) Lugs

Internal hex lug nuts offer a clean, smooth look for your wheels. You will notice these nuts have a smooth, cylindrical exterior. They do not have any external points for a wrench. Instead, they feature a hexagonal (six-sided) socket in the center.

You need a special Allen-style key that fits inside the lug to tighten or loosen it. This design provides a sleek appearance and adds a layer of security. It prevents removal with standard lug wrenches, protecting your expensive tires.

Security and Locking Lugs

Security lug nuts are essential for protecting high-performance wheels and tires from theft. These special nuts replace one standard lug on each wheel of your vehicle. They are highly effective because they require a unique, matching key for removal. This feature makes it much harder for thieves who rely on standard tools.

Anti-theft lug nuts use high-strength materials and unique locking mechanisms. These features ensure your wheels cannot be detached without the correct security tool. They provide robust protection against theft for your vehicle.

Modern security nuts use advanced designs to stop thieves.

• Many brands use computer-generated key patterns with extra-narrow grooves. This creates an almost infinite number of unique key patterns.
• These designs resist intrusion from common lock removal tools.
• Manufacturers also offer keys in multiple hex sizes to match your vehicle’s original lug wrench for an easy application.

Each brand has its own unique patterns. You can identify the type of locking nuts you have by their visual traits.

Understanding these patterns is the key to protecting your tires. Each set has a specific notch pattern designed to fit only one key, keeping your valuable wheels and tires safe.

Step 2: Find the Right Size for Your Drag Wheels Lug Nut Key

After you identify the pattern of your lug nuts, the next crucial step is finding the correct size. A key that is too small will not engage, and one that is too large will slip and strip the nut. This can damage both the key and the lug, making it impossible to remove your tires. Taking accurate measurements ensures you get the right tool for the job.

Measuring Spline Drive Lugs

Measuring spline drive lugs is a two-part process. You need to count the number of splines and measure the diameter. This combination is unique to your specific nuts.

1. Count the Splines: Carefully count the number of points or grooves on the outside of the lug nut. Common counts are 5, 6, 7, or 8 splines.
2. Measure the Diameter: Use a digital caliper or a precise ruler to measure the outer diameter of the nut from the tip of one spline to the tip of the one directly across from it. This measurement gives you the correct tool size.

Pro Tip: 📝 For the most accurate measurement, you should measure “across-flats,” meaning from one flat side of the head to the opposite flat side. This method applies to both SAE and metric threads and is critical for ensuring a secure fit for your tires.

Combining the spline count and the diameter measurement will help you find the exact key needed for your vehicle. For example, you might need a “6-Spline 19mm” key.

Sizing Internal Hex Lugs

Internal hex lugs require a key that fits perfectly inside the hexagonal socket. Using the wrong size key can easily strip the inside of the nut, making removal extremely difficult. You can find the correct size in a few ways.

• Check the Original Tool: Many hex keys have their size stamped directly on the side. This is the easiest way to identify the size you need.
• Measure the Fastener Hole: If you do not have the original key, you can use a digital caliper to measure the distance between two opposite flat sides inside the hex socket. This measurement will give you the required key size.
• Use a Sizing Chart: You can find hex key charts online that show the key heads at their actual size. Print one out and place your fastener over the images until you find a perfect match.
• Try a Trial-and-Error Approach: If you have a set of hex keys, you can carefully test them. Start with a mid-size key and see if it fits. The correct key will slide in snugly with no wiggle room. Do not force a key that is too large. This careful application prevents damage to your expensive tires and wheels.

Using the Original Part Number

The most reliable way to get a replacement drag wheels lug nut key is to use the original part number. When you purchase a set of locking or spline drive lug nuts, it almost always comes with an identification card or a sticker with a unique registration number.

Keep this number in a safe place! You will need it to order a replacement key directly from the manufacturer.

It is important to know what number to use.

• The correct number is the key registration number, often found on a silver sticker inside the original packaging.
• The number stamped on the lug nut itself (like the thread size, e.g., M14x1.5) is not the key code.

Many security lug manufacturers, like McGard, use computer-generated patterns. This means there are a nearly unlimited number of unique key designs. A universal key will not work for this type of security application. Each set of tires on your vehicle is protected by a unique pattern, making the registration number the only way to get a perfect match.

Remembering the difference between a thread size and a key code will save you time and frustration when you need a new key for your vehicle.

Step 3: Key Factors in Selecting Wheels and Tires

Beyond finding the right key, your overall wheel and tire selection impacts safety and performance. Making the right choices during the wheel selection process ensures your hardware functions correctly. This is especially true for a high-performance vehicle used in demanding drag-and-drive events. Considering these factors helps you avoid common wheel fitment mistakes.

Choosing Key Length for Wheel Depth

You must consider the design of your wheels when choosing a key. Many competition wheels feature deep-set lug holes or concave faces. A standard-length key may not be long enough to reach the lug nuts properly.

Using a key that is too short is risky. It can slip, damage your lug nuts, or scratch the face of your expensive wheels.

Always choose a key that extends far enough to allow you to turn it without your wrench hitting the wheel. This provides better leverage and ensures you can achieve the correct torque. Proper key length is also a factor in ensuring adequate brake caliper clearance for your application. This simple step protects your investment and makes working on your tires easier.

Why Material Strength Matters

Material strength is critical for every component in drag racing. A 1,000-horsepower vehicle can generate immense torque during a launch, placing extreme stress on parts. This is why racers upgrade to stronger components for their drag-and-drive application.

• Axles made from materials like through-hardened 4340 and Hy-Tuf alloy steel can handle over 240,000 psi of tensile strength.
• Upgraded driveshafts use high-strength aluminum or carbon fiber to manage shock loads during intense drag-and-drive events.
• These upgrades are essential for safety and performance in any drag-and-drive vehicle.

Your drag wheels lug nut key must also be strong enough for this environment. A weak key can break when you apply the high torque needed for your tires. Look for keys made from hardened, high-strength steel, like Chromoly, to ensure they can handle the demands of your drag-and-drive application. This is a key part of your drag-and-drive experience.

Verifying Thread Pitch and Seat Type

Finally, you must verify that your lug nuts match your vehicle’s studs and wheels. This involves checking two things: thread pitch and seat type. Using the wrong hardware is extremely dangerous and can cause a wheel to come off your vehicle. This is a vital step in your tire selection.

You can verify your vehicle’s thread pitch in several ways. You can use a thread pitch gauge, take a lug nut to a hardware store to match it, or check your owner’s manual. For your drag-and-drive application, you have many tire options, including DOT-approved tires.

Equally important is the seat type, which is where the lug nut contacts the wheel. The three main types have different shapes and are not interchangeable. Using the wrong type prevents the lug nut from seating correctly, which can damage your competition wheels and lead to failure during drag-and-drive racing. This is a critical part of selecting wheels and tires for drag-and-drive events.

Matching the thread pitch and seat type is a non-negotiable part of your wheel and tire selection for any application, especially for drag-and-drive racing and other drag-and-drive events. This ensures your tires are secure for all drag-and-drive events.

Step 4: Solutions for Lost Keys in Drag Racing

Losing your lug nut key can be a major setback, especially when you need to swap tires before important drag-and-drive events. Fortunately, you have several options to solve this problem and get your vehicle back on track. Choosing the right solution helps you avoid damaging your expensive wheels and tires.

Contact the Manufacturer

The safest and most reliable way to get a replacement key is to contact the manufacturer directly. This method guarantees you receive an exact match for your specific lug nuts. To order a new key, you will need to provide certain information.

1. The Wheel Lock Key Code: You can usually find this number on a sticker inside the original packaging or in your vehicle’s paperwork. This code is unique to your set.
2. A Clear Picture: If you cannot find the code, you can send the manufacturer a clear photo of the locking lug nut on your wheel. They can often identify the pattern from the image.

Remember that the part number for the lock set or the thread size stamped on the nut is not the key code. Providing the correct information ensures you get the right key for your tires quickly.

Visit a Professional Tire Shop

If you need to remove your tires immediately, visiting a professional tire shop is an excellent choice. Technicians at these shops have experience with all types of security nuts and own specialized tools for removal. They can often remove the locking nuts without the original key and without damaging your wheels. This is a great option if you are short on time before drag-and-drive events and need to get your performance tires mounted. This service protects your investment and gets you ready for your next race.

Use a Lug Nut Extractor/Removal Kit

As a last resort, you can use a lug nut extractor kit. These kits are available at most auto parts stores and are designed to grip and remove stripped or locking nuts. However, you must use this method with extreme care, as there is a risk of damaging your equipment. This is especially important for a vehicle prepared for drag-and-drive events.

Drilling out a seized nut can damage the wheel and hub. You must proceed with caution so as not to cause further damage to other component parts of your vehicle.

Using an extractor requires a steady hand and patience. Any mistake could lead to costly repairs for your wheels or studs, which is the last thing you need before competitive drag-and-drive events. This method should only be considered if you cannot get a replacement key or professional help for your tires.

You can easily choose the right key for your tires. You must confirm the lug nut pattern and the correct size for your vehicle. A strong key made of hardened steel handles the high torque of drag racing. The key’s length must be the right size to protect your wheels and tires.

Following these steps protects your investment. The correct drag wheels lug nut key ensures the safety of your vehicle and its expensive tires.

FAQ

Can I use a universal key for my security lugs?

No, you cannot use a universal key for most security lugs. Manufacturers create unique, computer-generated patterns for theft protection. Your specific key is the only one that fits your lug nuts. This design ensures your expensive wheels stay secure on your vehicle.

What happens if I use the wrong size key?

Using the wrong size key will damage your equipment. It can strip the grooves on the lug nut or break the key itself. This action makes wheel removal extremely difficult and can lead to costly repairs for your vehicle’s wheels or studs.

How should I store my lug nut key? 🔑

You should store your key in a secure, memorable location. Your vehicle’s glove box or factory tool kit are excellent options. You should also record the key’s registration number and keep it with your important vehicle documents for easy replacement if needed.

Why is Chromoly steel recommended for keys?

Chromoly steel is a very strong alloy that easily handles the high torque needed to secure drag racing tires. Keys made from weaker metals can break under pressure. Chromoly provides superior strength and safety for your high-performance application, protecting your investment.
